Features
• Designed for 19” rack installations
• Available for OM3, OM4 and SM
• Cassettes 100% Factory Tested & Terminated
• Modular UHD cassette design
• MTP adaptor panels available
• Blanking Panels available
• Designed for restricted/shallow depth applications (Max. depth 225mm for both 1RU & 2RU)

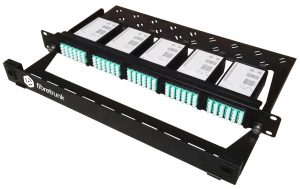

• 1RU design supports 5 x 24c cassettes (supports a total of 120c)

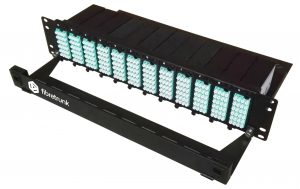

• 2RU design supports 12 x 24c cassettes (supports a total of 288c)
• Support 10/100G architecture
• Low Loss MTP elite connectors
• Low Loss LC connectors/couplers
• Easy Plug & Play installation ready for immediate use
• Rear Cable Manger included
• Front Mount Cable Tray with Hinged Cover (incl wiring doc with labelling template)
• Dust covers included on LC connectors
• Tool-less installation
Applications
• Data Centres
• Telecommunications
• Enterprise Network Environments
Cassettes Options
| MPO Cassettes 2MPO/12F-24LC | |
|---|---|
| OS2/UPC | MPO Cassette for FP2 Patch Panel, loaded 2 pcs 1MPO/12F/APC/male-12LC/UPC cable, SM-G657A1, total 24 fibre, front 6 LC/Quad blue color adapter, rear 2 MPO adapter. |
| OS2/APC | MPO Cassette for FP2 Patch Panel, loaded 2 pcs 1MPO/12F/APC/male-12LC/APC cable, SM-G657A1, total 24 fibre, front 6 LC/Quad green color adapter, rear 2 MPO adapter. |
| OM3 | MPO Cassette for FP2 Patch Panel, loaded 2 pcs 1MPO/12F/UPC/male-12LC/UPC cable, MM-OM3, total 24 fibre, front 6 LC/Quad aqua color adapter, rear 2 MPO adapter. |
| OM4 | MPO Cassette for FP2 Patch Panel, loaded 2 pcs 1MPO/12F/UPC/male-12LC/UPC cable, MM-OM4, total 24 fibre, front 6 LC/Quad aqua color adapter, rear 2 MPO adapter. |
| MTP Cassettes 2MTP/12F-24LC | |
|---|---|
| OS2/UPC | MTP Cassette for FP2 Patch Panel, loaded 3 pcs 1MTP USConec Elite/8F/APC/male-8LC/UPC cable, SM-G657A1, total 24 fibre, front 6 LC/Quad blue color adapter, rear 3 MTP adapter. |
| OS2/APC | MTP Cassette for FP2 Patch Panel, loaded 3 pcs 1MTP USConec Elite/8F/APC/male-8LC/APC cable, SM-G657A1, total 24 fibre, front 6 LC/Quad green color adapter, rear 3 MTP adapter. |
| OM3 | MTP Cassette for FP2 Patch Panel, loaded 3 pcs 1MTP USConec Elite/8F/UPC/male-8LC/UPC cable, MM-OM3, total 24 fibre, front 6 LC/Quad aqua color adapter, rear 3 MTP adapter. |
| OM4 | MTP Cassette for FP2 Patch Panel, loaded 3 pcs 1MTP USConec Elite/8F/UPC/male-8LC/UPC cable, MM-OM4, total 24 fibre, front 6 LC/Quad aqua color adapter, rear 3 MTP adapter. |
| MPO Cassettes 3MTP/8F-24LC | |
|---|---|
| OS2/UPC | MPO Cassette for FP2 Patch Panel, loaded 3 pcs 1MPO/8F/APC/male-8LC/UPC cable, SM-G657A1, total 24 fibre, front 6 LC/Quad blue color adapter, rear 3 MPO adapter. |
| OS2/APC | MPO Cassette for FP2 Patch Panel, loaded 3 pcs 1MPO/8F/APC/male-8LC/APC cable, SM-G657A1, total 24 fibre, front 6 LC/Quad green color adapter, rear 3 MPO adapter. |
| OM3 | MPO Cassette for FP2 Patch Panel, loaded 3 pcs 1MPO/8F/UPC/male-8LC/UPC cable, MM-OM3, total 24 fibre, front 6 LC/Quad aqua color adapter, rear 3 MPO adapter. |
| OM4 | MPO Cassette for FP2 Patch Panel, loaded 3 pcs 1MPO/8F/UPC/male-8LC/UPC cable, MM-OM4, total 24 fibre, front 6 LC/Quad aqua color adapter, rear 3 MPO adapter. |
| MTP Cassettes 3MTP/8F-24LC | |
|---|---|
| OS2/UPC | MTP Cassette for FP2 Patch Panel, loaded 3 pcs 1MTP USConec Elite/8F/APC/male-8LC/UPC cable, SM-G657A1, total 24 fibre, front 6 LC/Quad blue color adapter, rear 3 MTP adapter. |
| OS2/APC | MTP Cassette for FP2 Patch Panel, loaded 3 pcs 1MTP USConec Elite/8F/APC/male-8LC/APC cable, SM-G657A1, total 24 fibre, front 6 LC/Quad green color adapter, rear 3 MTP adapter. |
| OM3 | MTP Cassette for FP2 Patch Panel, loaded 3 pcs 1MTP USConec Elite/8F/UPC/male-8LC/UPC cable, MM-OM3, total 24 fibre, front 6 LC/Quad aqua color adapter, rear 3 MTP adapter. |
| OM4 | MTP Cassette for FP2 Patch Panel, loaded 3 pcs 1MTP USConec Elite/8F/UPC/male-8LC/UPC cable, MM-OM4, total 24 fibre, front 6 LC/Quad aqua color adapter, rear 3 MTP adapter. |
