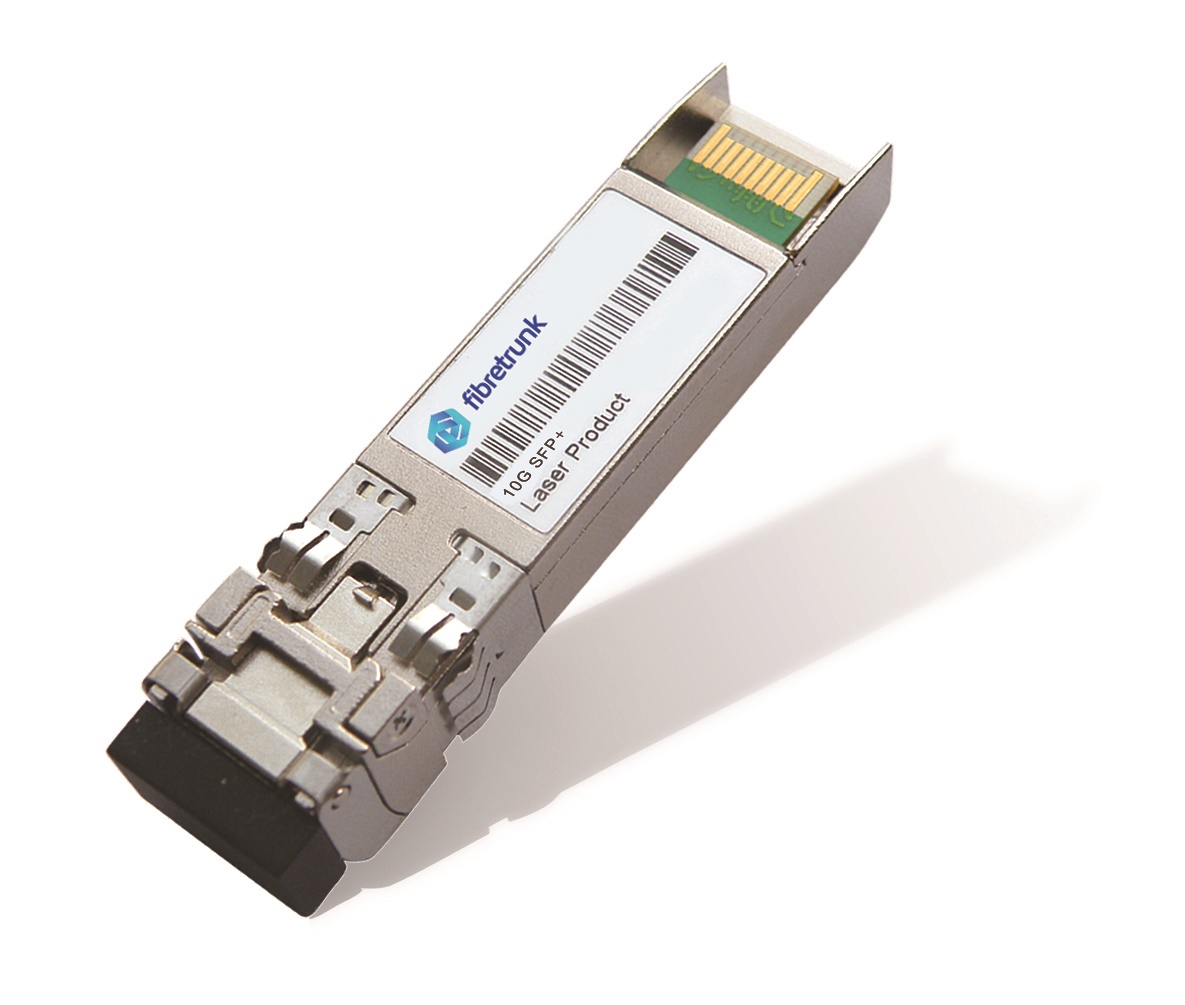

10G SFP+ Ethernet optical transceivers include LR, ER, ZR, and DWDM (40km and 80km) series. This series of products adopt LC connector, compliant with IEEE802.3ae, SFF-8472 and SFF-8431, with features of Low Power Consumption, Small Size and High-speed. They are designed for applications of Data Centers, Metro Network, Wireless Network and Transmission network.
Product Description | SFP+ SR | SFP+ SR Rate Select | SFP+ SR COB |
---|---|---|---|
Data Rate (Gbit/s) | 10G | 10G/1G | 10G |
Reach | 33/82/300m | 33/82/300m | 33/82/300m |
TX | 850nm VCSEL | 850nm VCSEL | 850nm VCSEL |
RX | PIN | PIN | PIN |
TX_Min (dBm) | -6.5 | -6.5 | -6.5 |
TX_Max (dBm) | -1 | -1 | -1 |
Rx Sensitivity (dBm) | -11.1 | -11.1 | -11.1 |
Power Consumption | <0.8w | <0.8w | <0.8W |
Temperature (deg C) | 0~70 | 0~70 | 0-70 |
Product Description | SFP+ LRM | SFP+ LR LTE | SFP+ LR | SFP+ LR | SFP+ LR Rate Select | SFP+ LR with APD |
---|---|---|---|---|---|---|
Data Rate (Gbit/s) | 10G | 10G | 10G | 10G | 10G/1G | 10G |
Reach | 100/220m | 1.5km | 10km | 10km | 10km | 40km |
TX | 1310nm FP | 1310nm FP | 1310nm DFB | 1310nm DFB | 1310nm DFB | 1310nm DFB |
RX | PIN | PIN | PIN | PIN | PIN | APD |
TX_Min (dBm) | -6.5 | -5.2 | -8.2 | -8.2 | -8.2 | -8.2 |
TX_Max (dBm) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Rx Sensitivity (dBm) | -6.5 | -14.4 | -14.4 | -14.4 | -14.4 | -24 |
Power Consumption | <1w | <1w | <1w | <1w | <1w | <1.2w |
Temperature (deg C) | 0~70 | 0~70 | 0-70 | -40~85 | 0~70 | 0~70 |
Product Description | SFP+ ER |
---|---|
Data Rate (Gbit/s) | 10G |
Reach | 40km |
TX | 1550nm EML |
RX | PIN |
TX_Min (dBm) | -3 |
TX_Max (dBm) | 3 |
Rx Sensitivity (dBm) | -15.8 |
Power Consumption | <1.5w |
Temperature (deg C) | 0~70 |
Product Description | SFP+ ZR |
---|---|
Data Rate (Gbit/s) | 10G |
Reach | 80km |
TX | 1550nm EML |
RX | APD |
TX_Min (dBm) | 0 |
TX_Max (dBm) | 4 |
Rx Sensitivity (dBm) | -24 |
Power Consumption | <1.5w |
Temperature (deg C) | 0~70 |
Product Description | SFP+ BIDI 20km | SFP+ BIDI 40km | SFP+ BIDI 60km |
---|---|---|---|
Data Rate (Gbit/s) | 10G | 10G | 10G |
Reach | 20km | 40km | 60km |
TX | DFB | DFB | DFB |
RX | PIN | APD | APD |
TX_Min (dBm) | -4.4 | 0 | 3 |
TX_Max (dBm) | 0.5 | 5 | 7 |
Rx Sensitivity (dBm) | -14.4 | -18 | -21 |
Power Consumption | <1w | <1.2w | <1.2w |
Temperature (deg C) | -40~85 | 0~70 | 0~70 |
Product Description | SFP+ CWDM LR | SFP+ CWDM ER | SFP+ CWDM 70km | SFP+ DWDM ER | SFP+ DWDM ZR |
---|---|---|---|---|---|
Data Rate (Gbit/s) | 10G | 10G | 10G | 10G | 10G |
Reach | 10km | 40km | 70km | 40km | 80km |
TX | DFB | EML | EML | EML | EML |
RX | PIN | PIN | APD | PIN | APD |
TX_Min (dBm) | -1 | -3 | 0 | -3 | 0 |
TX_Max (dBm) | 3 | 3 | 4 | 3 | 4 |
Rx Sensitivity (dBm) | -15 | -16.4 | -24 | -16.4 | -24 |
Power Consumption | <1.4w | <1.5w | <1.5w | <1.5w | <1.5w |
Temperature (deg C) | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 |
Fibretrunk has comprehensive portfolio of SONET optical transceivers, including LR, ER, ZR, DWDM ER, DWDM ZR series, compliant with SONET OC192/SDH STM64 and IEEE802.3ae. They are designed for applications of SONET (OC-192)/SDH (STM64) Line Card.
Product Description | SFP+ LR SONET |
---|---|
Data Rate (Gbit/s) | 10G |
Reach | 10km |
TX | 1310nm DFB |
RX | PIN |
TX_Min (dBm) | -6 |
TX_Max (dBm) | -1 |
Rx Sensitivity (dBm) | -14.6 |
Power Consumption | <1.2w |
Temperature (deg C) | 0~70 |
Product Description | SFP+ ER SONET |
---|---|
Data Rate (Gbit/s) | 10G |
Reach | 40km |
TX | 1550nm EML |
RX | PIN |
TX_Min (dBm) | -3 |
TX_Max (dBm) | 3 |
Rx Sensitivity (dBm) | -15.8 |
Power Consumption | <1.6w |
Temperature (deg C) | 0~70 |
Product Description | SFP+ ZR SONET |
---|---|
Data Rate (Gbit/s) | 10G |
Reach | 80Km |
TX | 1550nm EML |
RX | APD |
TX_Min (dBm) | 0 |
TX_Max (dBm) | 4 |
Rx Sensitivity (dBm) | -24 |
Power Consumption | <1.8w |
Temperature (deg C) | 0~70 |
Product Description | SFP+ CWDM ER SONET | SFP+ CWDM ZR SONET |
---|---|---|
Data Rate (Gbit/s) | 10G | 10G |
Reach | 40km | 70km |
TX | EML | EML |
RX | PIN | APD |
TX_Min (dBm) | -3 | 0 |
TX_Max (dBm) | 3 | 4 |
Rx Sensitivity (dBm) | -16.4 | -24 |
Power Consumption | <1.8w | <1.8w |
Temperature (deg C) | 0~70 | 0~70 |
Product Description | SFP+ DWDM ER SONET | SFP+ DWDM ZR SONET |
---|---|---|
Data Rate (Gbit/s) | 10G | 10G |
Reach | 40km | 80km |
TX | EML | EML |
RX | PIN | APD |
TX_Min (dBm) | -3 | 0 |
TX_Max (dBm) | 3 | 4 |
Rx Sensitivity (dBm) | -16.4 | -24 |
Power Consumption | <1.8w | <1.8w |
Temperature (deg C) | 0~70 | 0~70 |
