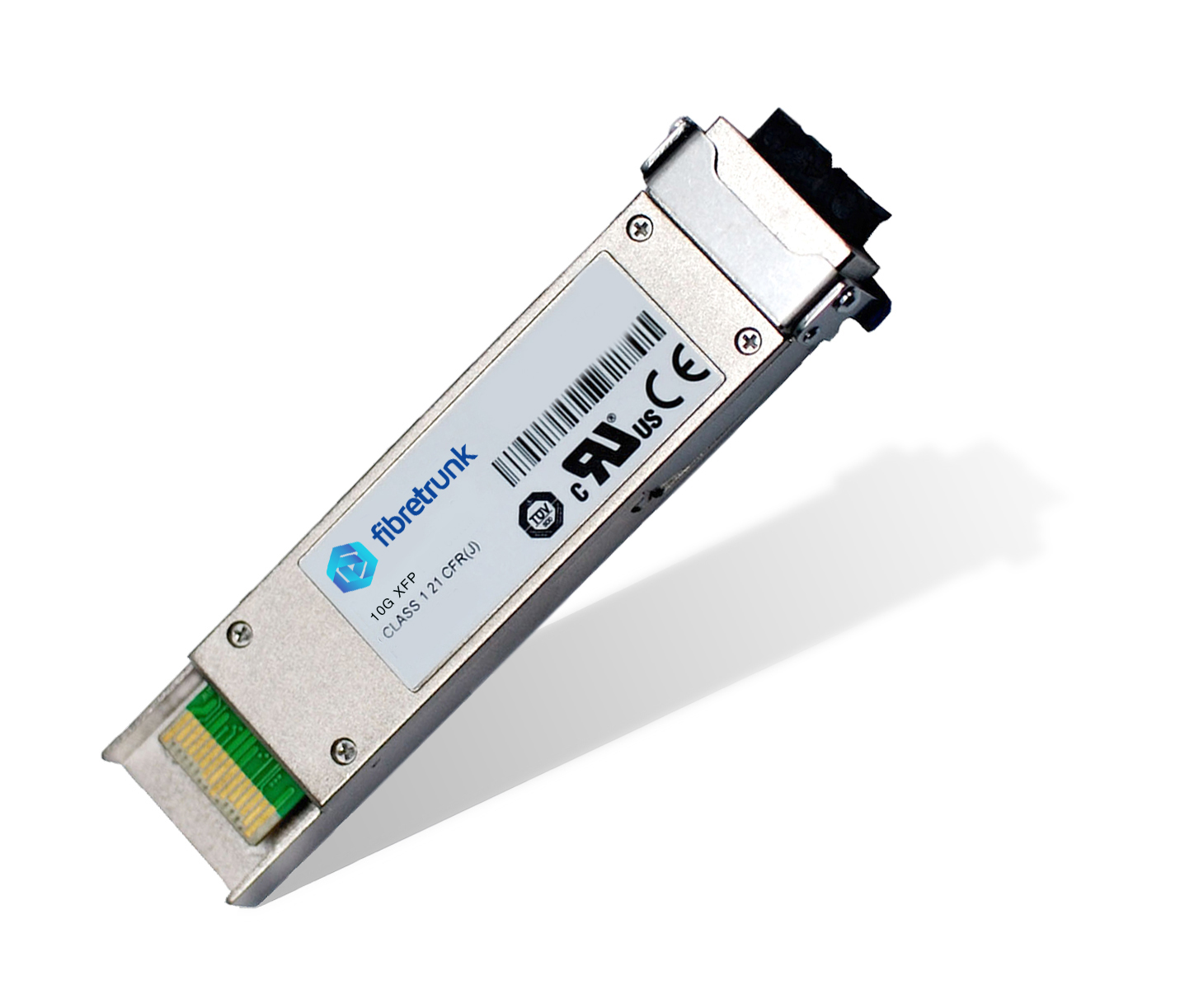

10G XFP Ethernet optical transceivers include LR, ER, ZR, and DWDM (40km and 80km) series. This series of products adopt LC connector, compliant with IEEE802.3ae, SFF-8472 and SFF-8431, with features of Low Power Consumption, Small Size and High-speed. They are designed for applications of Data Centers, Metro Network, Wireless Network and Transmission network.

Product DescriptionXFP SR
Data Rate (Gbit/s)10G
Reach33/82/300m
TX850nm VCSEL
RXPIN
TX_Min (dBm)-6.5
TX_Max (dBm)-1
Rx Sensitivity (dBm)-11.1
Power Consumption<1.5w
Temperature (deg C)0~70
Product DescriptionXFP LR SONET
Data Rate (Gbit/s)10G
Reach10km
TX1310nm DFB
RXPIN
TX_Min (dBm)-6
TX_Max (dBm)-1
Rx Sensitivity (dBm)-14.6
Power Consumption<1.8w
Temperature (deg C)0~70
Product DescriptionXFP ER
Data Rate (Gbit/s)10G
Reach40km
TX1550nm EML
RXPIN
TX_Min (dBm)-3
TX_Max (dBm)3
Rx Sensitivity (dBm)-15.8
Power Consumption<3.5w
Temperature (deg C)0~70
Product DescriptionXFP ZR
Data Rate (Gbit/s)10G
Reach80km
TX1550nm EML
RXAPD
TX_Min (dBm)0
TX_Max (dBm)4
Rx Sensitivity (dBm)-24
Power Consumption<3.5w
Temperature (deg C)0~70
Product DescriptionXFP CWDM LRXFP CWDM ERXFP CWDM ER With APDXFP CWDM ZRXFP DWDM ERXFP DWDM ER With APDXFP DWDM ZR
Data Rate (Gbit/s)10G10G10G10G10G10G10G
Reach10km40km60/70km70km40km70/80km80km
TXDFBEMLEMLEMLEMLEMLEML
RXPINPINAPDAPDPINAPDAPD
TX_Min (dBm)-6-3-10-3-10
TX_Max (dBm)-1334334
Rx Sensitivity (dBm)-14.6-15.8-24-24-15.8-24-24
Power Consumption<3.5w<3.5w<3.5w<3.5w<3.5w<3.5w<3.5w
Temperature (deg C)0~700~700~700~700~700~700~70

Please contact us on +61 2 7229 0600 to speak with a specialist
