10G SFP+ Ethernet optical transceivers include LR, ER, ZR, and DWDM (40km and 80km) series. This series of products adopt LC connector, compliant with IEEE802.3ae, SFF-8472 and SFF-8431, with features of Low Power Consumption, Small Size and High-speed. They are designed for applications of Data Centers, Metro Network, Wireless Network and Transmission network.

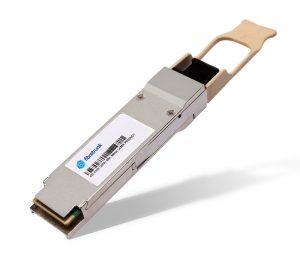

Product Description | QSFP+ SR4 | QSFP+ eSR4 |
---|---|---|
Data Rate (Gbit/s) | 40G | 40G |
Reach | 100m | 300m |
TX | 850nm VCSEL | 850nm VCSEL |
RX | PIN | PIN |
TX_Min (dBm) | -7.6 | -7.3 |
TX_Max (dBm) | 1 | 1 |
Rx Sensitivity (dBm) | -9.5 | -9.9 |
Power Consumption | <1.5w | <1.5w |
Temperature (deg C) | 0~70 | 0~70 |
Product Description | QSFP+ IR4 | QSFP+ LR4 | QSFP+ ER4 | QSFP+ LX4 |
---|---|---|---|---|
Data Rate (Gbit/s) | 40G | 40G | 40G | 40G |
Reach | 2km | 10km | 40km | 150m/2km |
TX | DFB CWDM | DFB CWDM | DFB CWDM | DFB CWDM |
RX | PIN | PIN | APD | PIN |
TX_Min (dBm) | -7 | -7 | -2.7 | 0.714285714 |
TX_Max (dBm) | 2.3 | 2.3 | 4.5 | 3.5/2.3 |
Rx Sensitivity (dBm) | -11.7 | -13.7 | -19 | 0.598290598 |
Power Consumption | <3.5w | <3.5w | <3.5w | <3.5w |
Temperature (deg C) | 0-70 | 0~70 | 0~70 | 0~70 |
Product Description | QSFP+ PSM IR4 | QSFP+ PSM LR4 |
---|---|---|
Data Rate (Gbit/s) | 40G | 40G |
Reach | 1.4km | 10km |
TX | 1310nm FP | 1310nm DFB |
RX | PIN | PIN |
TX_Min (dBm) | -5.5 | -5.5 |
TX_Max (dBm) | 1.5 | 1.5 |
Rx Sensitivity (dBm) | -11.5 | -12.6 |
Power Consumption | <3.5w | <3.5w |
Temperature (deg C) | 0~70 | 0~70 |
