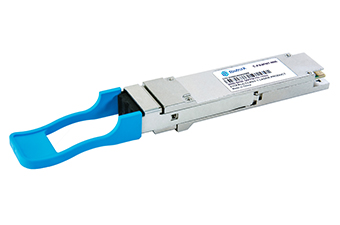

200G product portfolio includes SR4 and FR4. The series of products comply with IEEE 802.3cd, IEEE 802.3bs and QSFP56 MSA and are mainly applied in 200G Ethernet, Data Centre and Cloud Networks.
| Product Description | QSFP56 SR4 | QSFP56 FR4 | |
|---|---|---|---|
| Data Rate(Gbit/s) | 200G | 200G | |
| TX | 850nm VCSEL | EML CWDM4 | |
| RX | PIN | PIN | |
| TX_Min (dBm) | -6.5 | -4.2 | |
| TX_Max (dBm) | 4 | 4.7 | |
| RX_Min (dBm) | -8.4 | -8.2 | |
| RX_Max (dBm) | 4 | 4.7 | |
| Power Consumption | 5.5 | 6.5 | |
| Reach | 100m | 2km | |
| Temperature | (deg C) | 0-70 | 15-65 |
