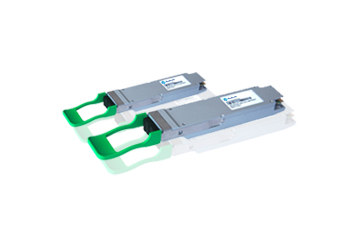

A comprehensive 400G OSFP optical transceiver portfolio, including of 4x50Gx2 and 4X100G architectures. This series of products comply with IEEE 802.3bs and OSFP MSA standards, and are mainly applied in 400G Ethernet, Data Center and Cloud Networks.
| Product Description | OSFP SR8 | OSFP 2x FR4 | OSFP DR4 | OSFP DR4+ | OSFP FR4 | OSFP LR4 | OSFP AOC | |
|---|---|---|---|---|---|---|---|---|
| Data Rate(Gbit/s) | 400G | 400G | 400G | 400G | 400G | 400G | 400G | |
| TX | 850nm VCSEL | EML CWDM | 1310nm EML | 1310nm EML | EML CWDM4 | EML CWDM4 | 850nm VCSEL | |
| RX | PIN | PIN | PIN | PIN | PIN | PIN | PIN | |
| TX_Min (dBm) | -6 | -4.2 | -2.9 | -2.4 | -3.3 | -1.4 | N/A | |
| TX_Max (dBm) | 4 | 4.7 | 4 | 4 | 3.5 | 4.5 | N/A | |
| RX_Min (dBm) | -7.9 | -8.2 | -5.9 | -6.4 | -7.3 | -7.7 | N/A | |
| RX_Max (dBm) | 4 | 4.7 | 4 | 4.5 | 3.5 | 4.5 | N/A | |
| Power Consumption | 12 | 12 | 12 | 12 | 12 | 12 | 12.0 (each OSFP) | |
| Reach | 100m | 2km | 500m | 2km | 2km | 10km | 3~100m | |
| Temperature | (deg C) | 0~70 | 20~60 | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 |
