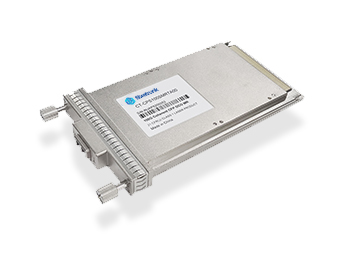

The coherent CFP DCO product family is designed based on dual polarization quadrature phase shift keying (DP-QPSK) or dual polarization quadrature amplitude modulation (DP-16QAM), supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization. The product family supports 100/200Gbps transmission speeds in an industry-standard, pluggable CFP form factor with 16nm DSP and can be widely used in metro carrier, access and Cloud/DCI applications.
| Product Description | 100G CFP DCO, C Band,50GHz Grid,191.15-196.1GHz | 200G CFP DCO, C Band,50GHz Grid,191.15-196.1GHz | |
|---|---|---|---|
| Client Side | OTU4:OTL4.4 / OTL4.10;100GE:CAUI4 / CAUI10 | OTU4: OTL4.4;100GE: CAUI4 | |
| Line Side Modulation Format | DP-QPSK | DP-16QAM | |
| Line Side FEC mode | HDFEC / SDFEC | SDFEC | |
| Typical OSNR Sen (dB) | 15-Dec | 21 | |
| TX_Min (dBm) | -15 | -15 | |
| TX_Max (dBm) | 2 | 2 | |
| RX_Min (dBm) | -24 | -20 | |
| RX_Max (dBm) | 5 | 5 | |
| Power Consumption | 28 | 32 | |
| Reach | MR | MR | |
| Temperature | (deg C) | 0~70 | 0~70 |
