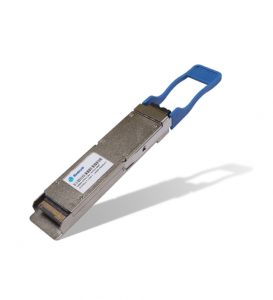

100G QSFP28 optical transceivers include SR4, AOC, AOC breakout, CWDM4, CLR4, eCWDM4, PSM4, PSM4 pigtail, LR4, LR4 Lite, ER4 Lite series. They use LC or MPO receptacles, with the features of IEEE802.3bm and SFF-8636 Compliant, MSA Compliant, Low Power Consumption, Small Size and High-speed. They are designed for applications of 100G Data Center Internal Network, Data Center Interconnection and Metro Network.

Product DescriptionQSFP28 SR4QSFP28 SR4 Dual RatesQSFP28 LR4 (Ethernet)
Data Rate (Gbit/s)100G100G/112G100G
Reach100m100m10km
TX850nm VCSEL850nm VCSEL1294 -1310nm LWDM DFB
RXPINPINPIN
TX_Min (dBm)-8.4-2.5-4.3
TX_Max (dBm)2.42.44.5
Rx Sensitivity (dBm)-10.3-4.4-10.6
Power Consumption<2.5W<2.5W<4.0W
Temperature (deg C)0~700~700~70
Product DescriptionQSFP28 LR4QSFP28 LR4 Dual Rates
Data Rate (Gbit/s)100G100G/112G
Reach10km10km
TX1294 -1310nm LWDM EML1294 - 1310nm LWDM EML
RXPINPIN
TX_Min (dBm)-4.30.24
TX_Max (dBm)4.54.0/2.9
Rx Sensitivity (dBm)-10.60.784090909
Power Consumption<4.5W<4.5W
Temperature (deg C)0~700~70
Product DescriptionQSFP28 CLR4 CWDM (Non-FEC)QSFP28 CWDM4 (FEC)QSFP28 eCWDM4
Data Rate (Gbit/s)100G100G100G
Reach2km2km10km
TXDFB CWDMDFB CWDMDFB CWDM
RXPINPINPIN
TX_Min (dBm)-6.5-6.5-6.5
TX_Max (dBm)2.52.52.5
Rx Sensitivity (dBm)-10-11.5-13
Power Consumption<3.5W<3.5W<3.5W
Temperature (deg C)0~700~700~70
Product DescriptionQSFP28 ER4 LiteQSFP28 ER4 Lite Dual Rates
Data Rate (Gbit/s)100G100G/112G
Reach30km(Non-FEC)/40km30km(Non-FEC)/40km
TX1294 -1310nm LWDM EML1294 - 1310nm LWDM EML
RXAPDAPD
TX_Min (dBm)11
TX_Max (dBm)4.5/4.54.5/4.5
Rx Sensitivity (dBm)0.808612440.790575916
Power Consumption<4.5W<4.5W
Temperature (deg C)0~700~70
Product DescriptionQSFP28 PSM4QSFP28 PSM4 Pigtail
Data Rate (Gbit/s)100G100G
Reach2km2km
TX1310nm DFB1310nm DFB
RXPINPIN
TX_Min (dBm)-5.5-5.5
TX_Max (dBm)22
Rx Sensitivity (dBm)-10.2-10.2
Power Consumption<3.5W<3.5W
Temperature (deg C)0~700~70
