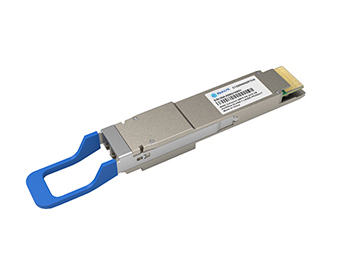

Coherent QSFP-DD product family is designed based on dual polarization quadrature phase shift keying (DP-QPSK) or dual polarization quadrature amplitude modulation (DP-16QAM) or probabilistic constellation shaping quadrature amplitude modulation (PCS-16QAM), supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization. The product family supports 100/400Gbps transmission speeds in an industry-standard, pluggable QSFP-DD form factor with 7nm DSP and can be widely used in metro carrier, access and Cloud/DCI applications.
| Product Description | 100G QSFP-DD DCO,C Band,50GHz Grid,191.15-196.1GHz | 400G QSFP-DD DCO,C Band,75GHz Grid,191.15-196.1GHz | |
|---|---|---|---|
| Client Side | OTU4 / 100GE | 100GE / 400GE | |
| Line Side Modulation Format | DP-QPSK | DP-16QAM | |
| Line Side FEC mode | HDFEC / OFEC | CFEC / OFEC | |
| Typical OSNR Sen (dB) | 15-Nov | 26 | |
| TX_Min (dBm) | -10 | -10 | |
| TX_Max (dBm) | -6 | -6 | |
| RX_Min (dBm) | -20 | -20 | |
| RX_Max (dBm) | 5 | 5 | |
| Power Consumption | 18 | 20 | |
| Reach | MR | ZR / ZR+ | |
| Temperature | (deg C) | 0~70 | 0~70 |
