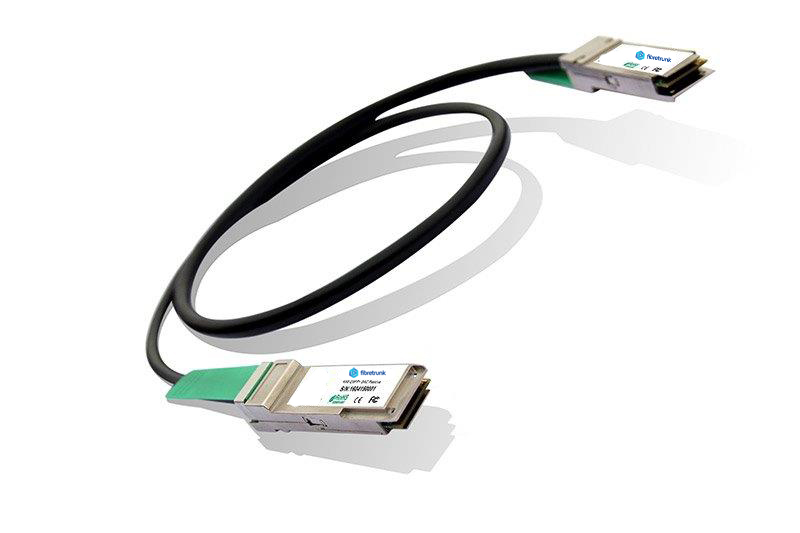

100G QSFP28 Direct Attach Cable (DAC) is a 4-channel parallel passive copper product for storage, data center, and high performance computing connectivity. It offers 4 independent data transmitting channels and 4 data receiving channels via copper cable, an aggregate data rate of 100Gbps over 5 meters transmission can be achieved by this product.
Features
• Compliant with SFF-8665/SFF-8679
• Compliant with IEEE 802.3bj
• 4 independent full-duplex channels
• Up to 25.78125 Gbps data rate per channel
• Up to 5m transmission
• Single 3.3V power supply
• Low insertion loss
• BER better than 10-15¬
• Operating temperature: -5~+70℃
• RoHS compliant
Applications
• 40G/100G Ethernet
• Infiniband, QDR/EDR
